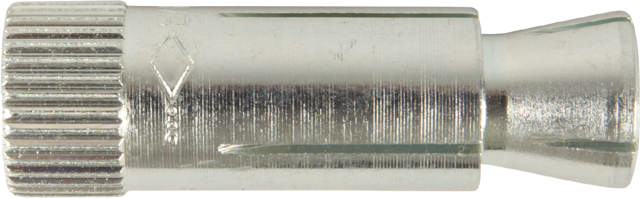

Hollow core anchor EHY, zinc plated
-
Hanging ventilation, cable ladders, sprinkler systems, fan systems, ceiling and brackets together with threaded rod with nuts or metric screw.
-
The EHY hollow core anchor is made in one piece with a special design for installation in hollow core slab elements. By tightening the bolt or nut, the cone expands the sleeve, creating a strong connection in cavities or solid concrete. Z-21.1-1785 approval permits installation in connection with cavities and solid concrete, min. 50 mm from prestressing reinforcement.
- Easy and flexible to use
- Approved installation both in cavities and in solid parts of the element.
- Used together with standard screws or threaded rods & nut
Technical Specification
| Application environment | Indoors |
| Corrosion resistance class | C1 |
| Material to install in | Concrete |
| Surface treatment | Zinc plated |
| Certificate |
|---|
| General Product Safety Regulation (GPSR) |
| Product Data Sheet |
| Product data sheet |
| Technical Document |
| Hollow core anchor EHY - Load table (EN) |
