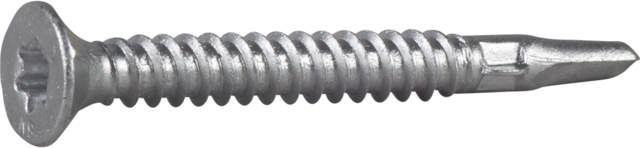

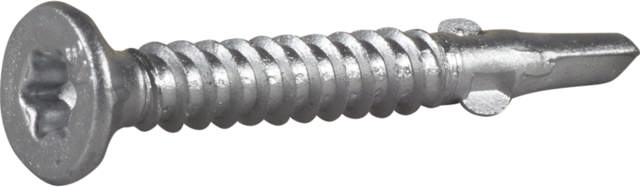

Wing tip screw for steel joists, Corrseal, TX drive
-
ESSVE Wing tip screw with drillpoint designed for the installation of timber and sheet materials indoors against steel joists and outdoors.
-
The screw is produced in hardened carbon steel with CorrSeal surface treatment, C4 classified. A drilling and self-tapping screw equipped with the wings for clearance drilling in soft materials. The head is equipped with cutting grooves that countersinks the screw during installation. Equipped TX-bit drive.
-
Recommended rpm approx. 1400-2200/min.
Technical Specification
| Application environment | Outdoors |
| Head shape | Countersunk |
| Main Materials | Steel |
| Corrosion resistance class | C4 |
| Material | SAE1022 |
| Material to install in | Steel |
| Surface treatment | CorrSeal |
| Certificate |
|---|
| General Product Safety Regulation (GPSR) |
| Product Data Sheet |
| Product data sheet |
| Technical Document |
| CorrSeal coating test report, class C4(15) according to EN 14592:2022 (EN) |
