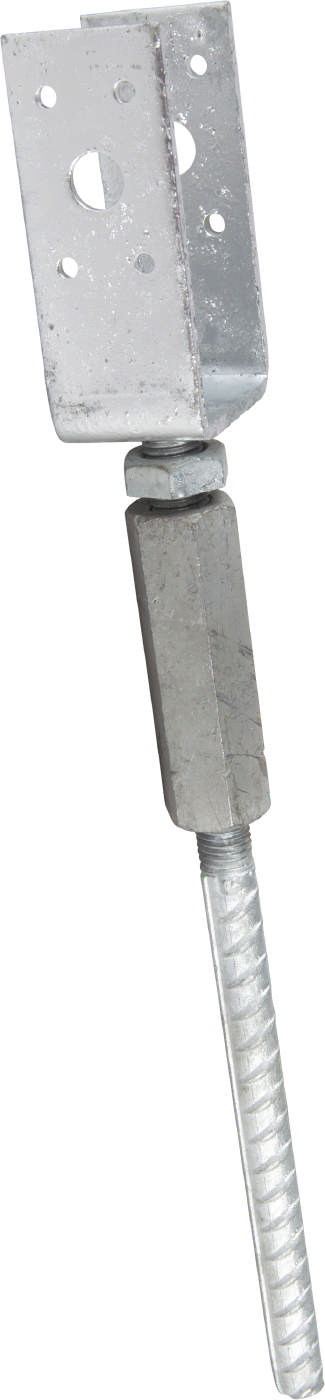

Adjustable post base type UJ, zinc-plated
-
ESSVE Adjustable post base, type UJ, is intended for use as a support of pillars and posts that are secured in concrete or stone. The adjustable post base is used when the possibility of height adjustment is required.
-
Adjustable Post base Type UJ us U-shaped and made of 4.0 mm steel. The base consists of a welded M16-bolt, long nut, low nut and support leg of rebar Ø16 mm fitted with an top M16 thread. The U-shaped section is equipped with nail/screw holes Ø5.0 mm and Ø11.0 bolt holes and/or Ø13.5 mm according to the table below.The support leg is adjustable 50 mm, i.e. between 115 and 165 mm. The post base is zinc plated.
-
Adjustable Post base Type UJ is cast in concrete or stone. The pillar or post is secured in the post base using suitable screws depending on the load.
Technical Specification
| Application environment | Outdoors |
| Corrosion resistance class | C3 |
| Surface treatment | Hot Dip Galvanized |
| Certificate |
|---|
| General Product Safety Regulation (GPSR) |
| Product Data Sheet |
| Product data sheet |
